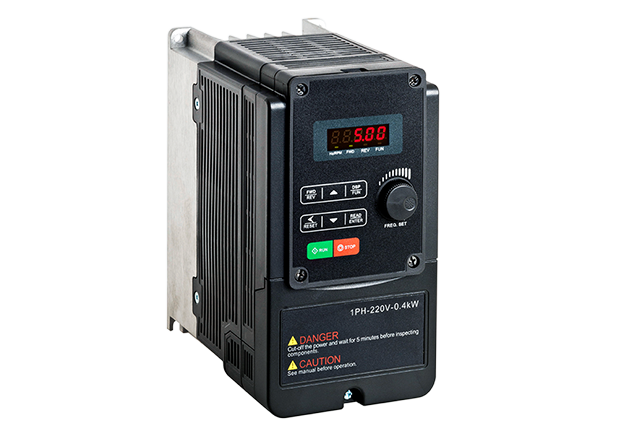

FUS 220/E5

Features

• U/f-characteristics control
• open loop vector control (150% start torque at 1Hz)
• safety stopp and fire mode
• digital keypad with speed potentiometer
• detachable operating unit
• max. rotating field frequency 650Hz
• integrated braking chopper
• degree of protection IP20
• integrated mains filter
• integrated Modbus RTU
• controllable ventilator

Functions

• control and setpoint entry via
• terminals, operating unit and bus systems
• PWM clock frequency 1 - 16kHz
• built-in SPS function
• potentialfree control and signalling contacts
• 150% overload for 60s
• integrated PI-controller

Options: (please see accessories)

• remote control / copying module
• keypad extension cable
• Profibus DP module
• TCP-IP module
• DeviceNet module
• CANopen module
• RJ45 to USB cable
• operating software
• mounting plate for DIN rail

Preferred application areas

• electric pumps
• heat pumps
• vacuum pumps
• ventilators and fans
• travelling cranes
• extraction systems
• compressors
• stirrers
• centrifuges
• saws
• conveyors
• woodworking machines
• grinding machines
• textile machines
• packaging machines
• printing machines
• other
