ac drive 3-phase from 37kW
VersiDrive i 43C2+
[37 - 110kW]

VersiDrive i 43C2+ [37 - 110kW]

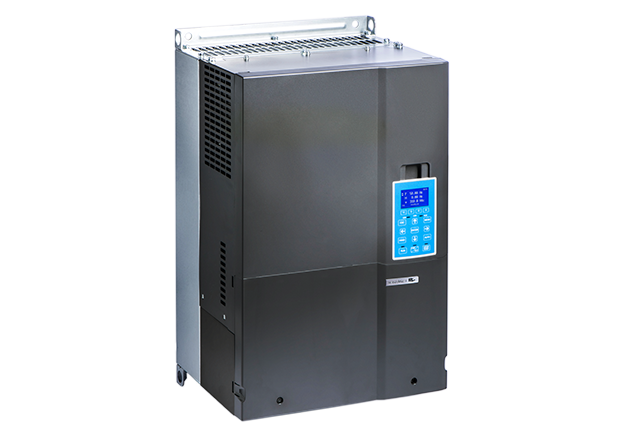

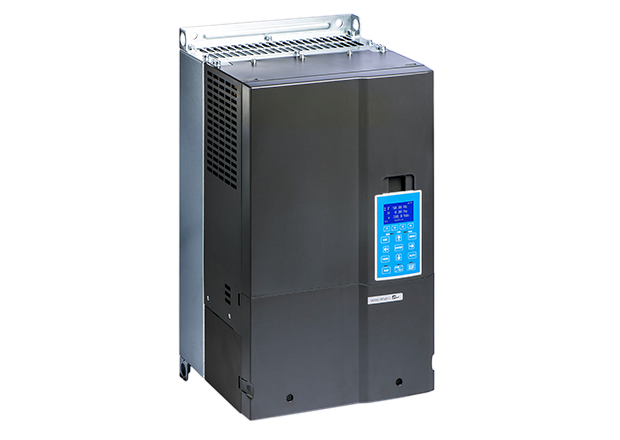

The 3-phase AC motor drive of PETER electronic from 37 up to 110kW "VersiDrive i 43C2+" provides the most efficient solution for all types of drive applications.
It features precise speed, torque and position control functions that are suitable for both sensor and sensorless types of synchronous and asynchronous motors.
The 3-phase AC drives VersiDrive i ... C2+ Series is also equipped with built-in PLC functions and supports the CANopen Master/Slave extension for the ultimate in system flexibility and fast data exchange.

* Required Fields

Sku:
from €2,559.00
Excl. 19% Tax
from €2,559.00
Excl. 19% Tax
Sample order
Current graduated prices
AC drives
00

Features

  • speed control, torque and bearing control
  • induction motors, PM motors
  • safe torque shutdown STO
  • detachable operating unit
  • max. rotating field frequency 599Hz
  • integrated braking chopper
  • degree of protection IP20
  • integrated mains filter
  • integrated MODBUS
  • integrated CANopen
  • replaceable fan

Functions

  • control and setpoint entry via terminals,
  • operating units and bus systems
  • built-in PLC function
  • potential-free control and signalling contact
  • 4 motor parameter sets
  • 150% overload for 60s
  • PWM in-/output
  • PI controller

Options: (please see accessories)

  • Profibus DP
  • Modbus TCP/IP
  • EtherNet/IP
  • EtherCAT
  • DeviceNet
  • ProfiNet
  • BACnet
  • E/A extensions
  • operating software

Preferred application areas

  • centrifuges
  • ventilators
  • pumps
  • conveying systems
  • grinding machines
  • woodworking machines
  • printing machines
  • packaging machines
  • textile machines
  • others

Support

+49 (0)9189/414710

We are available to assist with technical queries.

Tobias Schüssel
Rainer Beesk
