Soft starter with inrush current limiter

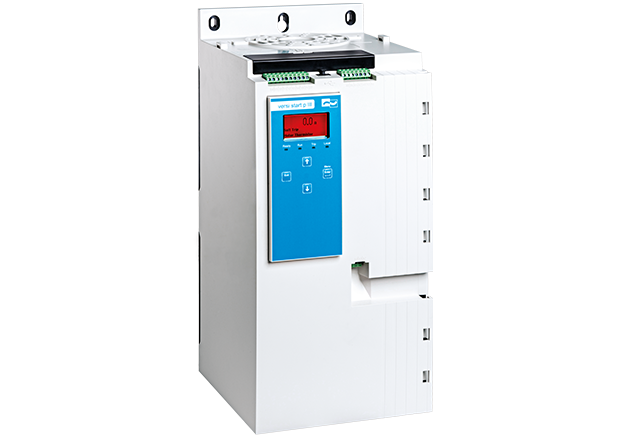

VersiStart p II [250 - 580A]

Features

• comprehensive and customizable motor operating performance
• current and torque reduction during acceleration
• degree of protection IP20 up to 135A
• display graphical LCD - real time graphs of motor operating performance
• integrated bypass
• motor PTC connection
• two-phase controlled dgital-soft starter (11-800kW)
• USB Port

Function

• 24VDC output
• 2x programmable)
• adjustable initial start current level up to 600% of nominal rating
• analog output
• divers Soft Start/Stop control types
• reay outputs (3x programmable)
• remote control inputs (2x fixed
• units with 600V upon request

Options

• 29000.2S811)
• Card & Cable (29000.2S809)
• DeveiceNet Interface (29000.2S802)
• Ethernet IP Interface (29000.2S803)
• Finger protection (from 184A up to 580A)
• ModBus RTU Interface (29000.2S804)
• ModBus TCP Interface (29000.2S805)
• Profibus Interface (29000.2S806)
• Profinet Interface (29000.2S807)
• Remote Keypad
• Remote Keypad & Cable (29000.2S801)
• Remote Keypad Card (29000.2S808)
• SmartCard Pump Application (29000.2S810)

Preferred application areas

• centrifuges
• compressors
• conveyors
• drives with high load
• electric pumps
• extraction systems
• grinding machines
• heat pumps
• others
• packaging machines
• printing machines
• saws
• stirrers
• textile machines
• travelling cranes
• vacuum pumps
• ventilators and fans
• woodworking machines
