soft starter up to 1250 A

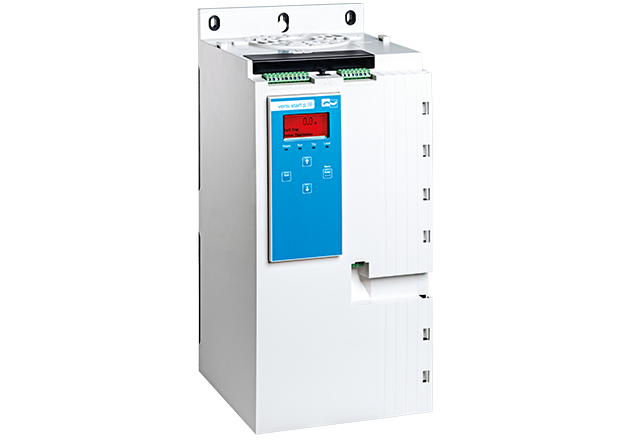

VersiStart p III [835 - 1250A]

Features

• Comprehensive and customizable motor protection
• current and torque reduction during acceleration
• display graphical LCD - real time graphs of motor operating performance
• inside delta (6-wire) connection
• integrated bypass
• motor PTC connection
• three-phase controlled dgital-soft starter (400-600kW)
• USB Port

Function

• 2 motor sets: forward or reverse jog direction
• 24VDC output
• 2x programmable)
• adjustable initial start current level up to 600% of nominal rating
• analog output
• divers Soft Start/Stop control types
• emergency run
• relay outputs (3x programmable)
• remote control inputs (2x fixed
• units with 690V upon request

Options

• Card & Cable
• DeveiceNet Interface
• Ethernet IP Interface
• ModBus RTU Interface
• ModBus TCP Interface
• Profibus Interface
• Profinet Interface
• Remote Keypad
• Remote Keypad & Cable
• Remote Keypad Card
• SmartCard Pump Application

Preferred application areas

• centrifuges
• compressors
• conveyors
• drives with high load
• electric pumps
• extraction systems
• grinding machines
• heat pumps
• others
• packaging machines
• printing machines
• saws
• stirrers
• textile machines
• travelling cranes
• vacuum pumps
• ventilators and fans
• woodworking machines
