Soft starter plus

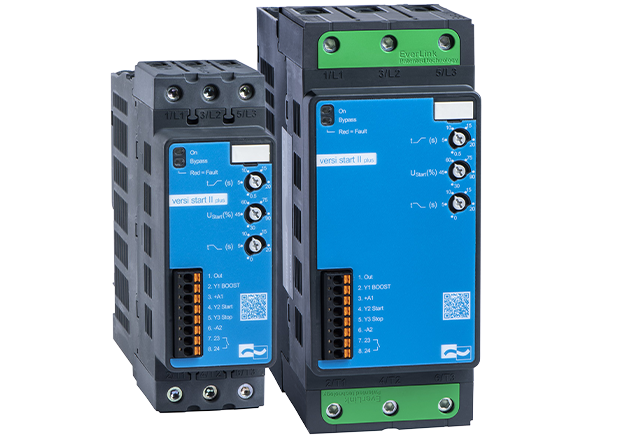

VersiStart II plus
[38 - 105A]

Features Soft Starter

• two-phase controlled soft starter
• controlled by microcontroller
• optimized soft start
• current and torque reduction during acceleration
• easy mounting, for snap-mounting on
• 35 mm standard rail (38-65A-Devices)
• 35 mm and 75mm standard rails (80-105A- Devices)
• or directly mountable
• integrated bypass relay
• parameterization by means of three potentiometers
• no mains neutral conductor (N) required
• economically priced substitute for star-delta starters
• Push-In Controlterminals
• heat sink temperature monitoring
• compact design, 55mm at up to 65A and 81mm at up to 105A
• degree of protection IP20

Functions Soft Starter

• soft acceleration and deceleration
• potential-free control input for soft acceleration and deceleration
• 3 separately adjustable parameters
• accel. time, start voltage, decel. time
• boost-start selectable
• potential-free relay output (closed, when motor is running)

Preferred application areas

• door and gate drives
• pumps
• ventilators
• fans
• conveying systems
• packaging machines
• transport systems
• assembly lines
• machine applications
• others
