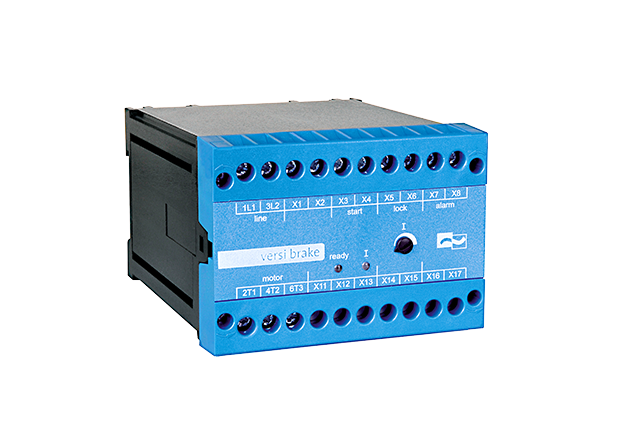

AC motor brake

* Required Fields

from €325.00
Excl. 19% Tax
from €325.00
Excl. 19% Tax


  • DC Braking with one-way rectification
  • controlled bei microcontroller
  • suitable for all asynchronous motors
  • easy mounting, also for retrofitting into existing plants
  • wear-resistant and maintenance-free
  • special voltages up tp 575V (UL: bis 480V) with Option „B“
  • for snap-mounting onto 35mm top-hat-rail
  • degree of protection IP 20


  • control via motor contactor
  • standstill detection
  • braking current limited to rated device current
  • remanence time optimization
  • braking current infinitely adjustable
  • potential-free output for motor contactor
  • interlocking during braking
  • potential-free output for fault signalling relay

Options: (upon request)

  • star-delta starting control (D)
  • motor temperature monitoring (P)
  • standstill sognalling relay (S)
  • wide-voltage-range 200…575V (B)
  • control voltage of 24VAC or 230VAC is necessary
  • (please note on order)
  • Upon Request:
  • A printed circuit-board version

Preferred application areas

  • saws
  • conveyors
  • woodworking machines
  • grinding machines
  • others
