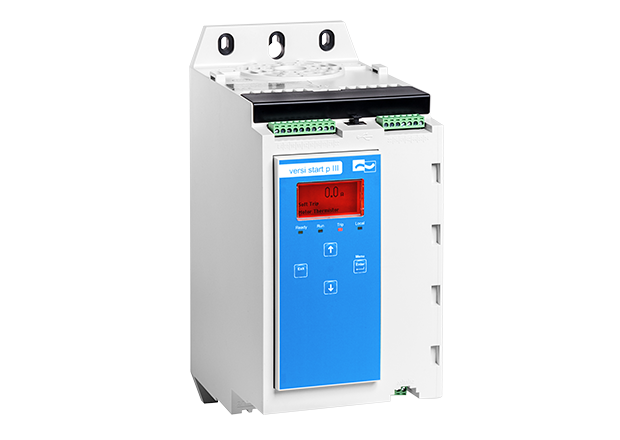

AC motor soft starter
VersiStart p II
[24 - 229A]

* Required Fields

Sku:
from €595.00
Excl. 19% Tax
from €595.00
Excl. 19% Tax
33

Features Soft Starter

  • two-phase controlled dgital-soft starter (11-800kW)
  • integrated bypass
  • current and torque reduction during acceleration
  • USB port
  • comprehensive and customizable motor operating performance
  • display graphical LCD - real time graphs of motor operating performance
  • degree of protection IP20 up to 135A
  • motor PTC connection

Functions Soft Starter

  • adjustable initial start current level up to 600% of nominal rating
  • remote control inputs (2x fixed, 2x programmable)
  • relay outputs (3x programmable)
  • 24VDC output
  • analog output
  • divers soft start/stop control types
  • units with 600V upon request

Options Soft Starter

  • Remote Keypad & Cable (29000.2S801)
  • DeveiceNet Interface (29000.2S802)
  • Ethernet IP Interface (29000.2S803)
  • ModBus RTU Interface (29000.2S804)
  • ModBus TCP Interface (29000.2S805)
  • Profibus Interface (29000.2S806)
  • Profinet Interface (29000.2S807)
  • Remote Keypad Card (29000.2S808)
  • Remote Keypad, Card & Cable (29000.2S809)
  • SmartCard Pump Application (29000.2S810)
  • Finger protection (from 184A up to 580A, 29000.2S811)

Preferred application areas

  • electric pumps
  • heat pumps
  • vacuum pumps
  • ventilators and fans
  • travelling cranes
  • extraction systems
  • compressors
  • stirrers
  • centrifuges
  • saws
  • conveyors
  • woodworking machines
  • grinding machines
  • textile machines
  • packaging machines
  • printing machines
  • drives with high load
  • others
