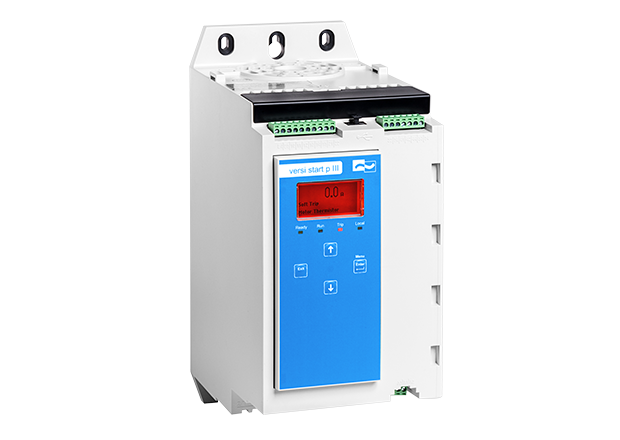

3 phase motor soft starter
VersiStart p III
[24 - 229A]

* Required Fields

Sku:
from €773.00
Excl. 19% Tax
from €773.00
Excl. 19% Tax
30

Features Soft Starter

  • three-phase controlled dgital-soft starter (11-800kW)
  • integrated bypass
  • current and torque reduction during acceleration
  • USB port
  • comprehensive and customizable motor protection
  • display graphical LCD - real time graphs of motor operating performance
  • inside delta (6-wire) connection
  • degree of protection IP20 up to 135A
  • motor PTC connection

Functions Soft Starter

  • adjustable initial start current level up to 600% of nominal rating
  • emergency run
  • 2 motor sets: forward or reverse jog direction
  • remote control inputs (2x fixed, 2x programmable)
  • relay outputs (3x programmable)
  • 24VDC output
  • analog output
  • divers soft start/stop control types
  • units with 690V upon request

Options Soft Starter

  • Remote Keypad & Cable
  • DeveiceNet Interface
  • Ethernet IP Interface
  • ModBus RTU Interface
  • ModBus TCP Interface
  • Profibus Interface
  • Profinet Interface
  • Remote Keypad Card
  • Remote Keypad, Card & Cable
  • SmartCard Pump Application
  • Finger protection (from 184A up to 580A)

Preferred application areas

  • electric pumps
  • heat pumps
  • vacuum pumps
  • ventilators and fans
  • travelling cranes
  • extraction systems
  • compressors
  • stirrers
  • centrifuges
  • saws
  • conveyors
  • woodworking machines
  • grinding machines
  • textile machines
  • packaging machines
  • printing machines
  • drives with high load
  • others
