ac drive with plc function

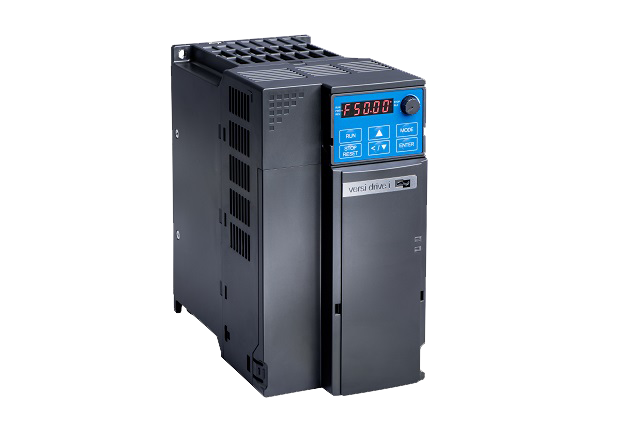

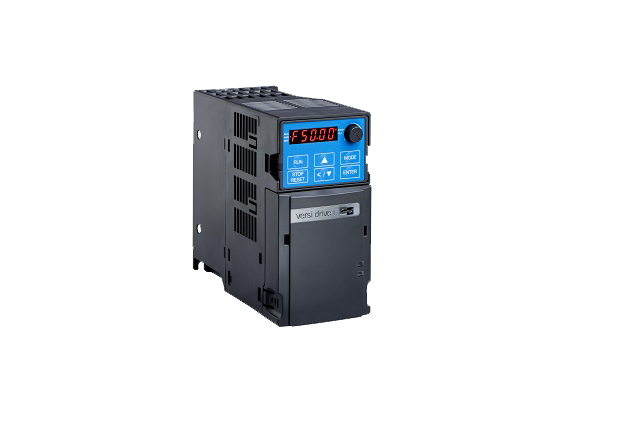

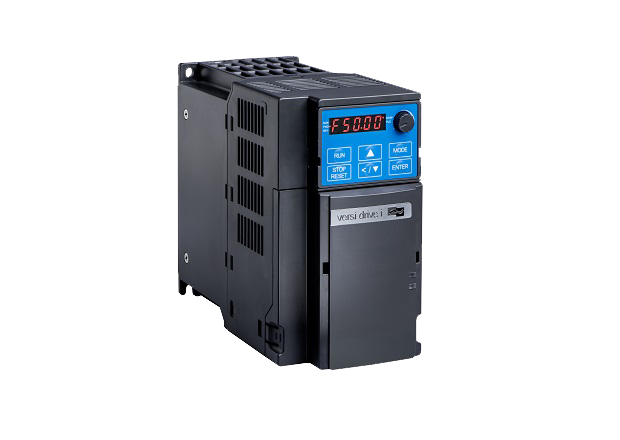

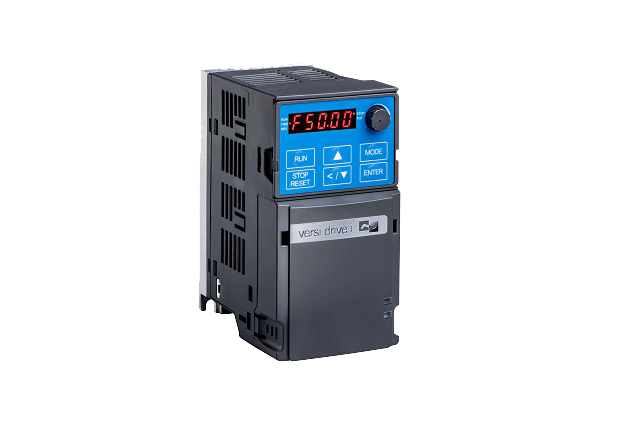

VersiDrive i 21MS3-F/43MS3-F
[0,2 - 22kW]

Our ac drive with PLC function, series VersiDrive I MS3 are the new generation high performance and standard compact vector control drives that inherit PETER electronic superior drive technology – all in one drive that has been reduced 40% in size.
A variety of essential functions are built-in as standard, including: PLC capacity for simple programming needs, a communication slots for various communication cards, and a USB port to make data uploads and downloads fast and easy.

* Required Fields

Sku:
from €248.00
Excl. 19% Tax
from €248.00
Excl. 19% Tax
37

Features

  • U/f-characteristics control
  • open loop vector control
  • induction motors, PM motors
  • safe torque shutdown STO
  • detachable operating unit
  • max. rotating field frequency 599Hz
  • integrated braking chopper
  • degree of protection IP20
  • integrated mains filter
  • USB port
  • integrated MODBUS
  • replaceable fan

Functions

  • control and setpoint entry via terminals,
  • operating units and bus systems
  • built-in PLC function
  • potential-free control and signalling contact
  • 4 motor parameter sets
  • 150% overload for 60s
  • PWM in/-output
  • PI controller

Options (please see accessories)

  • extension cable for operating unit
  • Profibus DP
  • Modbus TCP
  • EtherNet/IP
  • DeviceNet module
  • CANopen
  • operating software

Preferred application areas

  • centrifuges
  • ventilators
  • pumps
  • conveying systems
  • grinding machines
  • woodworking machines
  • printing machinery
  • packaging machines
  • textile machines
  • other
