DC brake circuit board version
VersiBrake Safe LP PLC
[60A]

VersiBrake Safe LP PLC [60A]

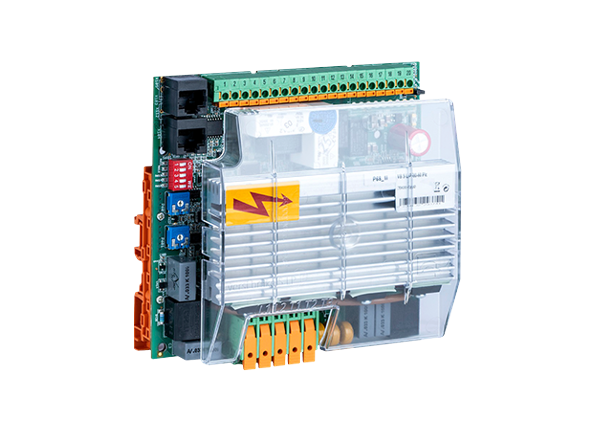

The new VersiBrake Safe LP 480-60 Plc braking device keeps all performance and safety-relevant device values of a motor under control, so that all components are protected as much as possible during braking and maximum operational safety can be guaranteed.
The European DIN standards (DIN EN ISO 13849-1:2016-06 / DIN EN 61508-1:2011-02) for the safety of woodworking machines are met. The safety functions include, for example, preventing unintentional start-up due to interference, monitored or controlled shutdown, activation of the (safety) door lock or external standstill monitoring with intelligent standstill detection.

* Required Fields

Sku:
€722.00
Excl. 19% Tax
€722.00
Excl. 19% Tax
Sample order
Current graduated prices
DC brakes
0

Features

  • braking device as a printed circuit board version
  • DC braking with fully controlled bridge circuit up to 60A
  • a structure without mechanical switching elements in power circuit
  • integrated standstill detection
  • monitoring of stopping time
  • suitable for all asynchronous motors
  • suitable for IE1, IE2 und IE3 motors
  • self-optimizing braking
  • CANopen on board
  • push-in power and control terminals
  • meets trade assoc. requirements for PL = c / SIL1,
  • acc. to EN ISO 13849-1:2016-06 / EN 61508-1:2011-02

Functions

  • parameterization via CAN-Bus
  • potential-free control inputs and outputs
  • motor temperature monitoring (switch, PTC, KTY, PT100)
  • emergency stop function
  • device protection
  • tool speed monitoring (external speed sensor required)
  • safety-related motor standstill relay (safety door interlock)
  • safety-related locking relay
  • fault relay
  • star-delta starting control

Preferred application areas

  • security doors
  • vibration sifters
  • wood working machines (milling/planing machines)
  • grinding machines
  • mixer, et cetera

Support

+49 (0)9189/414710

We are available to assist with technical queries.
