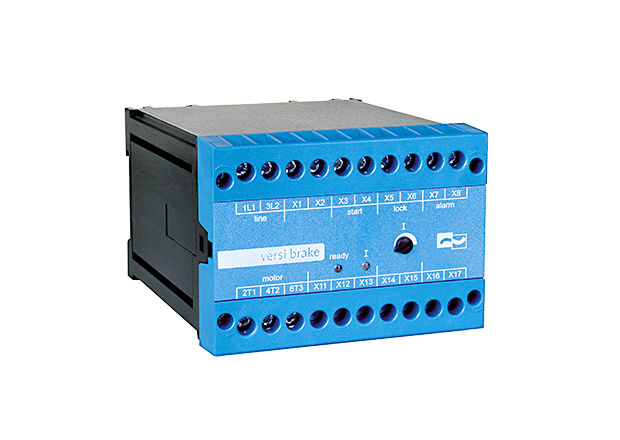

VersiBrake [25A]

Features

• also for retrofitting into existing plants
• controlled bei microcontroller
• DC braking with one-way rectification
• degree of protection IP 20
• easy mounting
• for snap-mounting onto 35mm top-hat rail
• special voltages up to 575V (UL: up to 480V) with Option „B“
• suitable for all asynchronous motors
• wear-resistant and maintenance-free

Function

• Interlocking during braking;
• braking current infinitely adjustable
• braking current limited to rated device current
• control via motor contactor
• potential-free output for fault signalling relay
• potential-free output for motor contactor
• remanence time optimization
• standstill detection

Options

• (please note on order)
• control voltage of 24VAC or 230VAC is necessary
• motor temperature monitoring (P)
• standstill sognalling relay (S)
• star-delta starting control (D)
• UL version
• wide-voltage-range 200…575V (B)

Preferred application areas

• conveyors
• grinding machines
• others
• saws
• woodworking machines
