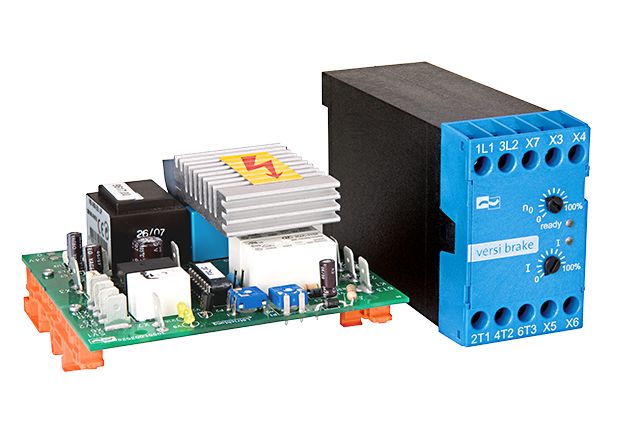

VersiBrake L (LP) [6 - 30A]

Features

• acc. to DIN EN ISO 13849-1
• printed circuit-board version IP 00
• also for retrofitting into existing plants
• controlled by microcontroller
• DC braking with one-way rectification
• degree of protection: case version IP 20
• easy mounting
• for snap-on mounting onto 35mm DIN rail
• integrated braking contactor
• meets trade assoc. requirements for PL = b
• printed circuit-board version with fault signaling contact
• suitable for all asynchronous motors and for mono phase motors
• wear-resistant and maintenance-free

Function

• (overload protection)
• also usable to energize the star contactor during braking
• and via motor contactor (double safety)
• individual adaptable to different motor types
• Interlocking during braking;
• automatic remanence time optimization
• braking current control
• braking current cutoff after motor standstill
• braking current infinitely adjustable 10-100%
• potential-free output for motor contactor
• standstill threshold adjustable
• start braking via detection of motor voltage

Preferred application areas

• conveyors
• grinding machines
• others
• saws
• woodworking machines
